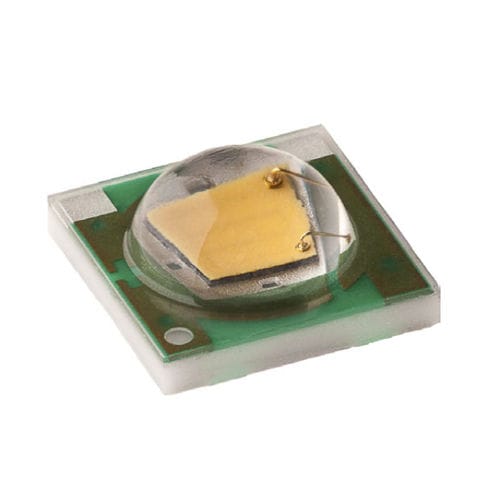

The XLamp® XP-E LED combines the proven lighting-class
performance and reliability of the XLamp XR-E LED in a package
with an 80% smaller footprint. The XLamp XP-E LED continues Cree
LED’s history of innovation in LEDs for lighting applications with
wide viewing angle, symmetrical package, unlimited floor life and
electrically neutral thermal path.
XLamp LEDs bring high performance and quality of light to a wide
range of lighting applications, including color-changing, portable
and personal, outdoor, indoor-directional, transportation , stage and
studio, commercial, horticulture, and emergency-vehicle lighting.
FEATURES
• Available in white, 80-CRI, 85-CRI, and 90-CRI white, blue,
green, amber, red-orange, red, & High Efficiency (HE) photo red
• Maximum drive current: up to 1 A
• Low thermal resistance: as low as 8°C/W
• Maximum junction temperature: 150 °C
• Wide viewing angle: 115°‑130°
• Unlimited floor life at ≤ 30 °C/85% RH
• Reflow solderable – JEDEC J-STD-020C compatible
• Electrically neutral thermal path
• RoHS and REACh compliant
• UL® recognized component (E349212)
Spectrum : white, red, green, blue, orange
Configuration : chip
Mounting : outdoor
Product applications : for lighting, lighting, floor, for vehicles, LED, CRI
