Ultra compact 0603 Size, High Intensity Reflector Type White LED

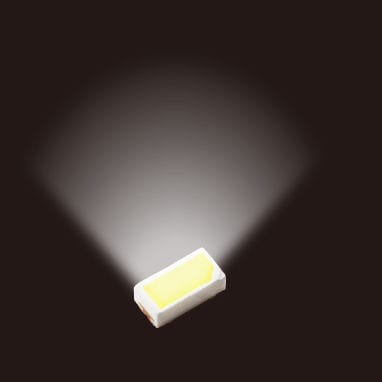

The CSL1104WB is a white LED that achieves a high luminous intensity of 2.0 cd in an ultra-compact 0603 size. This ultra-compact product contributes to space saving of applications. Since high-density mounting is possible, it also contributes to improving design, such as enabling blackout expression of panels. Color variation is the issue for white LEDs, but this product has improved this and subdivided the chromaticity rank system. This simplifies the color adjustment process and reduces application development effort.
LED Type High Brightness
Package size[mm] 1.6×0.8(t=0.56)
Emitting color White
Luminous Intensity(Single)(Typ.)[mcd] 2200.0
Number of Brightness Rank 3
Chromaticity coordinates(x,y) (0.302, 0.292)
Forward Voltage VF (Typ.) [V] 2.9
IF @ VF [mA] 20
Chip Structure InGaN
Power Dissipation [mW] 144
Operating Temperature[°C] -40 to 110
Storage Temperature [°C] -40 to 110
0603 compact size
High intensity reflector type
Improved color variation
Spectrum : white
Configuration : ultra-compact
