Product Description

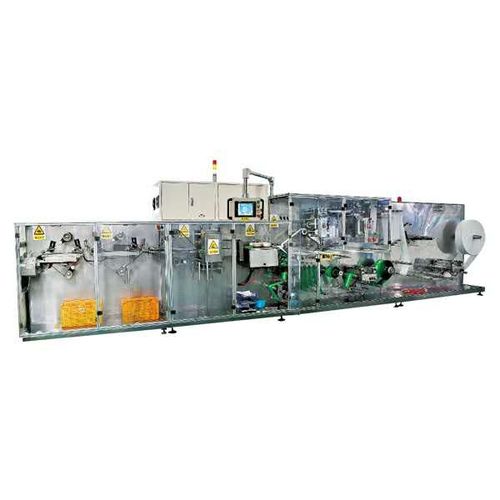

Model:GM-082
counting and stacking speed:≥30 bags/min,10 pieces/bag
Yield:≥98%
Working efficiency:≥95%
Nonwoven fabrics material:spunlace nonwoven fabrics,dust free paper, complex film.,etc,width was at 130-200mm
Punch dimension:length:80-150mm(the longer the film was,the slower the production can be)width:40-100mm
Three size:L8.15m * W1.55m * H2.00m
DW:about 8000KG
Installation power:about 19KW
Power requirement:three phase four cables system(A,B,C,PE),380v/50HZ
Air requirement :input pressure:0.5-0.8Mpa,air consumption≤300LPM

The full servo driving
By adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system,it ensured a highly accurate package and stability.

High production efficiency
Non-stop,Non-slowing down while bonding materials,automatically elimilating folded waste and sending alarm while lacking wipes.

Automatically eliminating wastes
All folded waste including the raw materails can be torn out.

Automatically counting stacker
It runs a function of counting and stacking pouch as to customer’s requirement.

High hygienic safety character
Adapting full closed loop medicine soup accurate humidification,the recyucling pollution were avoided

Longer knife service time
patened cutting knife technology triples the service time in comparison with the usual knives.

Intelligent failure analysis
when the machine breaks and material abnormal operation happens,it gave out relatively failure warning tips

Finished product : for wet wipes
Other characteristics : PLC-controlled
