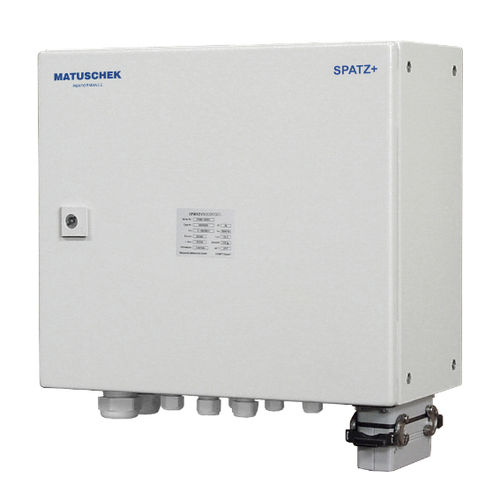

SPATZ+ High Precision Weld Timer
Our compact SPATZ+ high precision weld timers are universally applicable and inexpensive alternatives to conventional power sources for micro and small parts connections. Here are some facts about out SPATZ+ Weld Timer:
Compact, uniform design, regardless of whether HF, MF, HPAC
Simple plug & play commissioning
Extensive connection options such as:
Measuring signal inputs for current, voltage, 2x displacement (analog / digital), 2x force, temperature
2x proportional valve output
2x LSK linear welding head
16 / 11 digital I/O, extendable
Sensor switchover option for up to 5 welding heads
Numerous fieldbus variants
Master / slave system for more current / higher voltage
Ethernet/USB
Control types (in 25 µs cycle): current (KSR), voltage (KUR), power (KPR), temperature (KTR)
1 024 programs / 16 freely programmable pulses
Numerous options for switching off / on via position, voltage and force thresholds
Tolerance band monitoring
Numerous counters
Storage of the last 100 000 QA data in the timer
HD curve display for analysis of force and displacement in particular
Numerous transfer options for QS data into superordinate systems, as well as programming options out of superordinate systems (Industry 4.0)
Uniform, intuitive programming / analysis software
SPATZ+H300
I2: – 100 – 9 000 A (9 kA, 6 % ED)
Smax: – 100 kVA, 400
U20: – 10 V DC
Cycle: – 20 000 Hz
Transf.: – external (SPATZT1-Pack)
Other characteristics : with LiFePO4 battery, for domestic use
Voltage : 220 V
