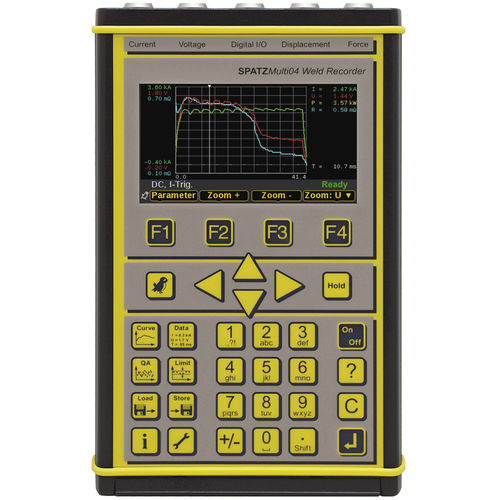

SPATZMulti04 Innovative Weld Checker and Weld Monitor for RSW
The SPATZMulti04 is an innovative, manufacturer-independent welding recorder. It enables the simultaneous recording, analysis and monitoring of all important process variables, such as welding current, electrode force and voltage. It is the first weld monitor which is capable monitoring all 4 weld parameters within just one device.
Sensors
Safe and unmistakable locking by high quality color coded sensor connectors
Possible PLC coupling by two digital inputs and outputs (24 V DC)
Automatic detection of SPATZMulti04 sensors as well as suitable sensors from other suppliers
Voltage measurement lines integrated in the SPATZMulti04 force sensors allow accurate measurements and thus weld time optimization
Data recording
Simultaneous and gapless recording of process variables in the internal memory or on an SD-HC memory card
Supplied 8 GB SD-HC memory card and maximum memory capacity up to a 32 GB SD-HC memory card
Easy data transfer to the PC via SD-HC memory card
Possible storage of more than 1 000 000 recordings and more than 10 000 welding process curves
Data analysis and quality assurance
Clear presentation of measured values and curves
Freely configurable selection of displayed measurement data
Selective zoom function for either enlarged or reduced view of the process curves in amplitude and time
Exact analysis possibilities with regards to the electricity increase times, power construction times, phase cuts, spatter detection and electrode penetration through clear user interface structures
Technique : resistance, spot
Power supply : three-phase
Output current : DC, pulsed DC
Other characteristics : automated, electronic, medium-frequency, inverter
Current : Max.:
Output frequency : 1,000 Hz
