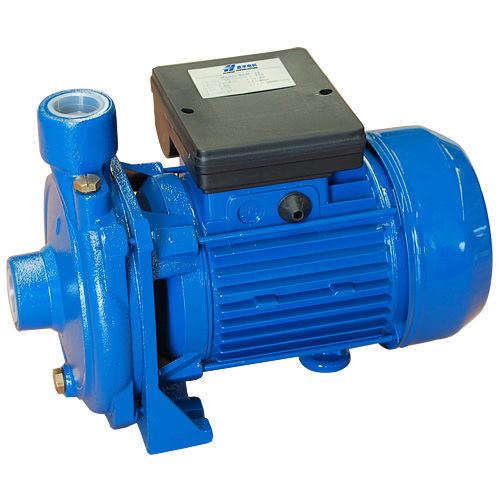

Water pumpSCM series

1. Working conditions:
Max temperature of fluid up to:　　　80℃
Max ambient temperature up to:　40℃
Max Pressure:　10bar

2. Structural characteristics:
Pump casing:　 Cast iron
Impeller:　 Brass
Motor housing:　 Aluminum
Mechanical seal:　 Stainless steel(graphite to ceramic)
Shaft:　 45# steel or stainless iron
Bearing:　 SKF/NTN/NSK/China
Insulation class:　 B and F
Protection class:　IP44 and IP54

Fluid : water
Operation : with electric motor
Technology : centrifugal
Domain : industrial
Material : aluminum, stainless steel, cast iron, brass
Flow : 100 l/min, 108 l/min, 115 l/min (26.41721 us gal/min)
Head : 9 m (29’06”)
Power : 400 W, 550 W, 750 W (0.54 hp)
