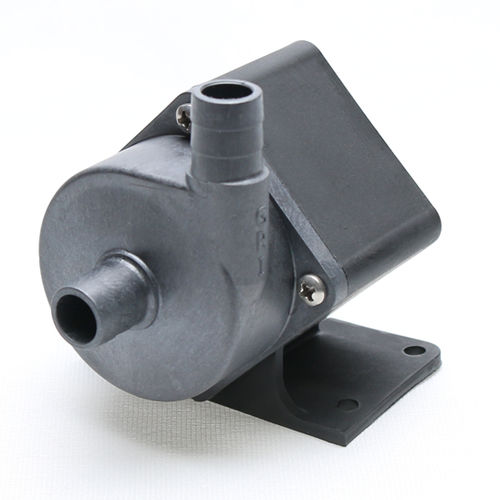

Designed for the circulation and transfer of fluids, GRI’s Integrity Series Pumps offer a flexible and robust solution to OEM applications.
Constructed with a proprietary blend of PPS, the INTG1 is compatible with a wide variety of fluids. By manufacturing the motors and the majority of the pump’s components in-house, GRI has the flexibility to precisely configure an Integrity Series pump to meet an OEM’s specific flow and pressure requirements.
Equipped with an integrated brushless DC variable speed motor, with voltage ranges from 12 volts to 36, these sealless, motor integrated centrifugal pumps incorporate the components into a compact, lightweight design. Fewer parts promote long life, quiet operation, and low power consumption.
The INTG1 is engineered with a variety of available control options to best fit an OEMs application. The supply voltage can directly control the pump performance. Performance can also be controlled by an available analog 0-5 volt DC input. Additionally, a tachometer option is available to measure pump speed.
GRI collaborates with OEM engineers who are unable to fulfill their unique pump specifications with an off-the-shelf solution and require a custom-engineered pump specific to their application.
Please click the “Pump Overview & Data Sheet” button above for a printable PDF which includes a performance curve, material specifications, and pump dimensions.
Fluid : water, for chemicals, for food products
Operation : with brushless DC motor
Technology : centrifugal
Domain : industrial
Applications : transfer, circulation
Material : plastic
Mobility : stationary, mobile
Voltage : 12V, 24V
Protection level : robust
Other characteristics : compact, small, OEM, integrated
Width : 72 mm (3 in)
Length : 89 mm (4 in)
Height : 83 mm (3 in)
Flow : 12 l/min (3.17006 us gal/min)
Pressure : 10 psi
Head : 22’00” (6.71 m)
Fluid temperature : 65 °C (149 °F)
