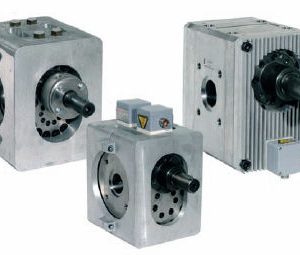

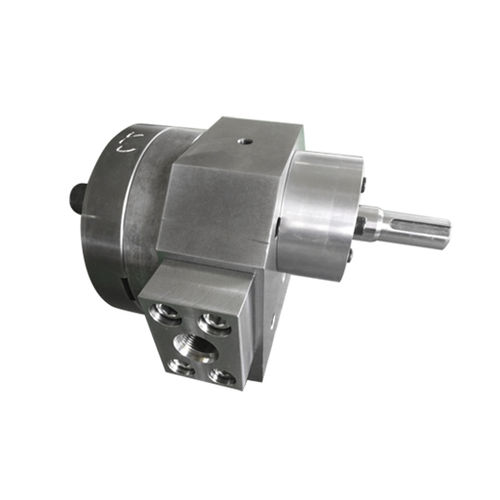

HLB-9000
Precision Metering Pump
Hydraulic Pump
Model
HLB-9000-0.3 (displacement 0.3ml/r)
HLB-9000-0.6 (displacement 0.6ml/r)
HLB-9000-1.2 (displacement 1.2ml/r)
HLB-9000-2.4 (displacement 2.4ml/r)
HLB-9000-45 (displacement 45ml/r)
Features and application
The HLB-9000-0.3/0.6/1.2/2.4/45 precision metering pumps can be used for the metering and conveying of fluids with viscosity of 1-100000 centipoise and allowing mild corrosion, such as: binders, additives, juices, nutrients, etc. The pumps can be used in a wide range of applications including general chemical, food, and pharmaceutical industries etc. At present, the precision metering pump is mainly used in the glue supply system of the slot coater for accurately and stably providing glue for the coater.
Technical features
The pump body is composed of three finely ground plate-like parts, which are assembled by positioning pins to ensure accurate control of the matching clearance; the axial working clearance of the finely-ground parts is small, which greatly improves the volumetric efficiency of the product; unique design of the pump renders impulse-free flow output, ensuring a stable and repeatable flow rate even under conditions of varying temperature, viscosity and pressure. Ultimately, the fluid output of this product is ensured with high precision, pulsation-free and good repeatability under various process conditions.
Fluid : water
Operation : electric
Priming : self-priming
Technology : plunger
Domain : industrial, chemical
Applications : metering, conveying
Mobility : stationary, mobile
