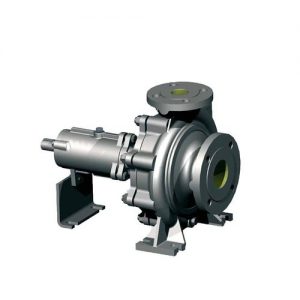

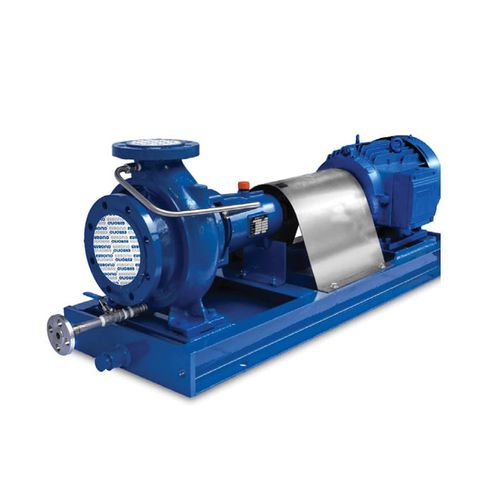

Single Stage, End Suction, Chemical Process/Oil & Gas, Surface Pumps
EISO pumps are Horizontal End Suction, single stage volute casing and designed to ISO 2858/5199. Its ‘back pull out’ design allows for maintenances without removing the piping and pumps alignments. Pumps can be fitted with single or double mechanical seal with seal support system according to API or ANSI seal plan. Cooling or heating jacket are available upon request.
Details
FlangeANSI B16.5B (optional), PN25 or #300 RF, PN 16(Std)
Materials Cast Iron, Ductile Iron, Cast Steel, Stainless Steel
MountingHorizontal closed impeller
Specifications
DN25 – 250mm
Q3 to 1200m³/hr
O.Pup to 16bar
H25 – 150m
Ns1450 – 2950rpm (50hZ),
1750 – 3550rpm (60hZ)
t-45ºC to 350ºC
Applications
Petrochemical & Chemical Industry
Pulp & Paper Industry
Fertilizer Industry
Food Processing
Metal & Steel Industry
Waste Water Treatment
Fluid : water, for chemicals, oil
Operation : with electric motor
Technology : centrifugal with volute
Domain : industrial, for wastewater treatment, for oil industry applications
Applications : cooling, chemical process
Material : metal, cast iron
Other characteristics : horizontal mount, single-stage, with mechanical seals, suction, with closed impeller, heating, with seal
Flow : Min.:
Pressure : Min.:
Head : Min.:
