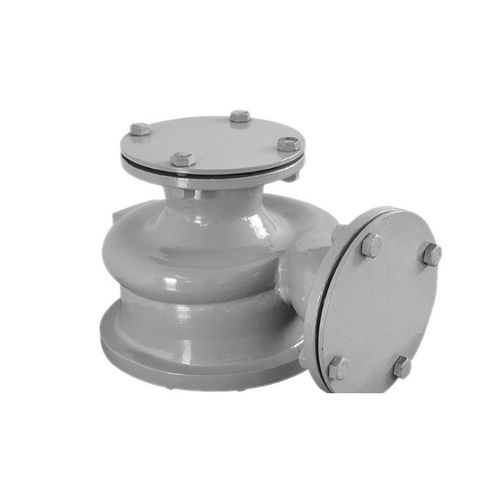

Power Transformer Oil Pump-Disk Type

1. Inlet and outlet are at a right angle of 90°;

2. Driven by disc motor, the axial dimension is short, the starting torque is large, the starting time is short, but the starting current is too large;

3, can use four-stage, six-stage motor, suitable for oil air, oil water cooler;

4, using centrifugal impeller

Flow range: 30m3/h~150m3/h, Delivery Head range: 1m~15m

Use conditions

Ambient temperature: -25 ℃ ~ + 40 ℃

Transmission Medium: transformer oil

The highest oil temperature of transformer oil inlet is 95 ℃,

The lowest is 5 ℃ higher than transformer oil freezing point.

It works by S1 continuous operation.

The rotation direction of the pump is clockwise.

Fluid : water, oil, air
Operation : electric
Priming : self-priming
Technology : centrifugal
Domain : industrial
Applications : outlet
Mobility : stationary, mobile
Other characteristics : four-stage, axial, large
Flow : Min.:
Head : Min.:
Fluid temperature : Min.:
