Description

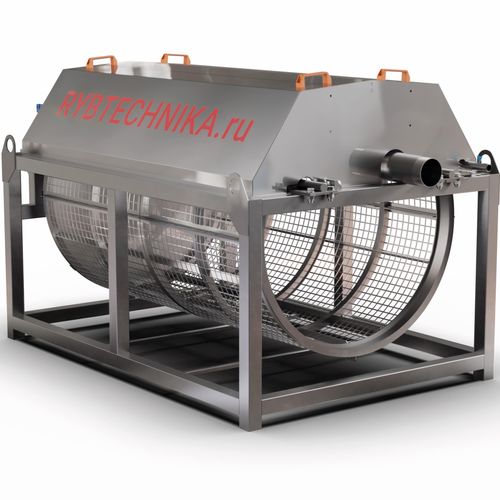

A simple, robust, low maintenance drum filter with a flow rate of 200 m3/h. The drum filter is used to filter water or other liquids, in closed circuits, on fish farms, in utilities for waste water treatment, oil refineries, food production, for wine material separation into fractions, etc. Drum filters differ in several parameters, including the key ones: flow rate and type (open/closed). The main advantage of BFL-200 filter made of 100% stainless steel is its robust construction. BFL-200 drum filter is ideal for large-scale companies. Nowadays most of 200 m3 drum filters are of closed type. Open channel type systems are used as well. When purchasing a 200 m3/h drum filter please pay special attention to its overall and mounting dimensions, as sumps for such filters are made of reinforced concrete, and their size can not be changed.
Technical specifications
Assignment
Filtration of water, waste water and oil products from mechanical impurities
Flow rate
200 m3/h at filter loading of 25 mg/l, t 22-24°C, 60 µm mesh fineness
Power of geared motor, kW
0,25
Power of pump, kW
1,8
Current type, frequency, voltage
three-phase AC, 50 Hz, 380 V
Area of filtration mesh, m2
5
Source water pressure before the pump, MPa
0,1-0,4
Dimensions (LxWxH), mm
2150×1260×1300
Type
Open channel/closed
Weight, kg
430
Warranty period, months from the date of sale
12
VAT
FCA, 0% VAT
Attention!
The manufacturer is constantly working to improve the design of the equipment, and therefore, the technical characteristics, overall and connecting dimensions of the equipment may differ from those indicated on the website.
Designed for : water, oil, for wastewater treatment, for wine
Filtration element : wire mesh, drum
Applications : for the food industry
Material : stainless steel
Filtration size : 60 µm
Operating pressure : Min.:
Flow : 200 m³/h (7,062.933 ft³/h)
Fluid temperature : Min.:
