Etachrom B
Main applications
Breweries
Building services
Cooling water and condensate
Energy
Food and beverages
HVAC
Heating / ventilation / air-condition
Industrial waste water
Industry engineering
Irrigation
Municipal waste water
Process
Steel
Suspended solids treatment
Systems
Waste water
Water
Water supply
Water transport
Watertransport
Technical data
Q max
260.0 m³/h
H max
105.0 m
Design

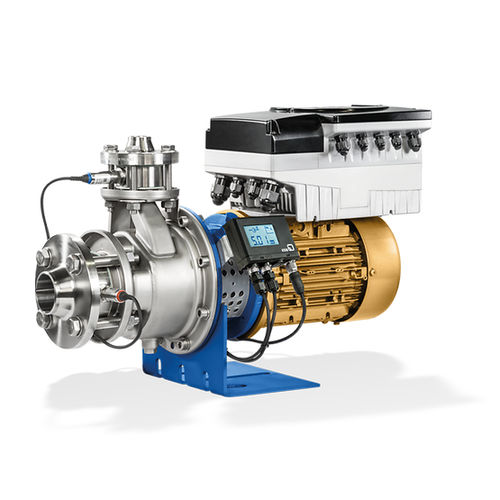

Horizontal single-stage close-coupled annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Application
Cleaning systems (bottle rinsing, crate washing, etc.), water treatment plants, water supply systems, fire-fighting systems, spray irrigation systems, irrigation systems, drainage systems, hot-water heating systems, air-conditioning systems, industrial washing plants, general industry, disposal of paint sludge, surface treatment
Fluid : for wastewater, for hot water, paint, condensate, oil
Operation : with electric motor
Technology : centrifugal with volute
Domain : industrial
Applications : firefighting, irrigation, washing, handling, cleaning, spraying, for air conditioning, cooling, rinsing, surface treatment, drainage, transport
Protection level : ATEX
Other characteristics : single-stage, horizontal mount, with mechanical seals, close-coupled, flange, variable-speed, heating
Flow : Min.:
Pressure : 12 bar (174.045 psi)
Head : Min.:
Power : 45 kW (61.18 hp)
