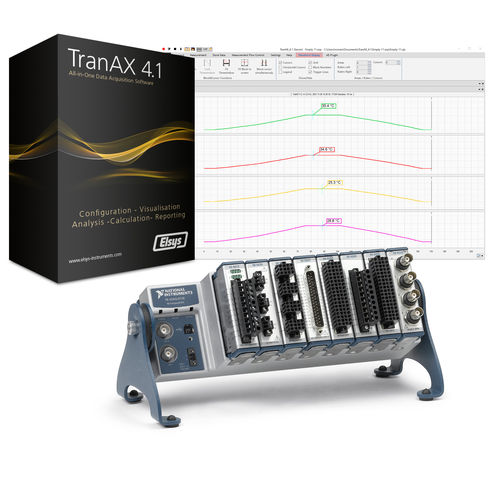

With the EL-DAQ measurement solution the user gets a full configured and tested NI® compactDAQ® chassis. Depending on the number of modules needed the 1-Slot cDAQ-9181,
4-Slot cDAQ-9184 or the 8-Slot cDAQ-9188 can be used.

The cDAQ® chassis is connected over Ethernet with the measurement computer on which the measurement software is running.
Customer specific chassis and mounting options on request.

The TranAX® DAQ software is initially developed for the high speed data acquisition cards and instruments from Elsys. With the new NI-Elsys Gateway driver, the full functionality of TranAX® is now available for the NI® cDAQ® chassis and modules.

TranAX® and NI® cDAQ® are together a powerful general measurement solution which is ready to use and doesn’t need any programming in LabVIEW® or any other language.

Available Inputs:
• Thermocouple NI-9210 & NI-9211
• RDT NI-9216 & NI-9217
• High Voltage 400/800 V NI-9242 & NI-9244

Measured quantity : temperature, voltage
Connector type : Ethernet
Applications : for monitoring, for thermocouples
Other characteristics : with external sensor, programmable, multi-channel, stand-alone, continuous, K-type thermocouple input
