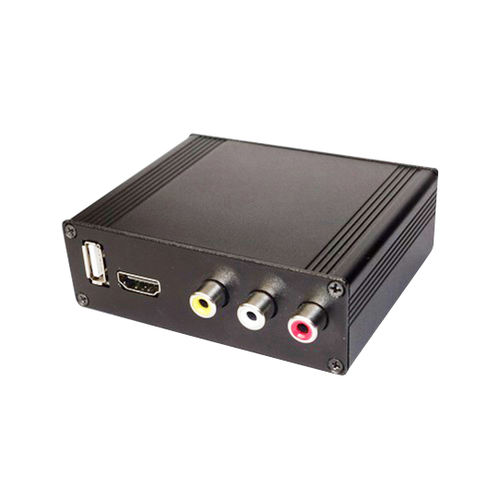

Qingzhun technology full HD video wireless real-time transmission receiver is our latest broadcast-level high-definition image real-time transmission system.
Ultra-small (92mmx75mmx30mm), ultra-light (150g), ultra-low power consumption (about 4W) ultra-high receiving sensitivity (-100dBm), HDMI and AV dual video sync output, with local storage, can be inserted into the U disk to record full HD video.
二、Image transmission receiver parameters
Operating frequency range – 300 MHz ~862MHz (Automatically searchable or manually set)
Modulation – COFDM 2K Mode
Support mobile speed – 230Km/h
Working bandwidth – 8MHz
RF interface – Dual SMA type 50 ohm antenna interface
Receiving sensitivity – -100dBm
Output Interface – HDMI + AV + USB（Support 1080P video recording and playback）
Parameter setting method – Infrared controller or custom button
Video resolution – 1920X1080P@60Hz / 1280X720P
screen ratio – 16：9
Working current – 350mA@12V
External power supply – DC 12V
Dimensions – 92 mm×75 mm×30 mm (L×W×H)
weight – 150g
Type : wireless, infrared
Applications : video transmission
Interface type : USB
