Video measuring systemOpenSYS series

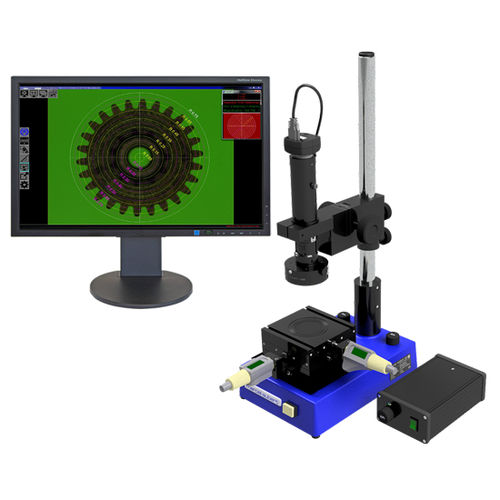

OpenSYS 25 Compact

Video measuring system

This entry-level system offers great ease of measurement. Its small size and weight makes it particularly practical in a workshop. Its simplicity of use is an asset for any operator.
N°: MA 331-075-14
Specifications:
• – Cast iron base.
• – Manual X-Y table MA 142-2, range 25 x 25mm.
Mechanical precision 0.005mm / 25mm.
Integrated rotary table.
• – BST digital micrometers.
Reading resolution 0.001mm.
• – Quick-displacement Z column.
• – 6.5X zoom-optic with 4 indexes.
• – 1.3 Mpx USB 3.0 color camera.
• – 24″ monitor.
• – LED illuminators.
• – Dimensions (WxDxH): 290x390x580mm.
• – Weight: 19kg.

Measured physical value : geometry, coordinate
Technology : video
Other characteristics : compact, USB
