Product Overview

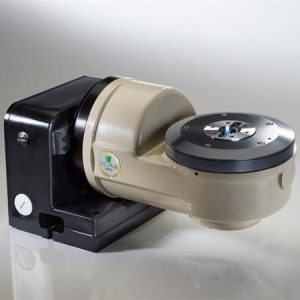

The 2-axis table TLT-210 SMART is designed as accessory for realizing the 4th and 5th axis on small/medium size vertical milling machining centres.

Types of Application

TLT-210 SMART allows to produce complex parts orienting the workpiece in space, for realizing both prismatic machining (3 + 2) and more complex surfaces with full 5-axis machining paths.
Among possible applications we can mention:

•General Mechanics
•Medical
•Luxury
•Low/Medium hardeness material machining
•Complex parts high precision machining

Technical Specifications and Layout

The table is made of two modules, each one equipped with torque motor, bearing, encoder and clamping device. The customer is left only the connection of the utilities (electrical and pneumatic) and of water cooling system, if present.

Major Innovations and Benefits

In a category where traditional mechanical transmission is still predominant, Technai has won the challenge of developing a competitive product with superior class performance, exploiting the benefits of Direct Drive technology.

The “SMART concept unfolded around precise specifications and presents a number of advantages:

•Integrated Direct Drive technology
•Compact layout that minimizes the footprint on the host table, allowing usage on small size milling machines
•Ease of loading/unloading, even with robotic arm, thanks to open frontage
•High structural stiffness (without a second support) due to the large bearing on tilting axis
•Optimal 3+2 machining with powerful hydraulic clamps feed by pneumatic pressure multiplier
•Maintenance free
•Superior dynamic performance
•High degree of positioning accuracy

Orientation : vertical, rotary
Number of axes : 2-axis
Other characteristics : aluminum, high-accuracy
