Pantograph design
16 ball bearings
Stepping motor drive
Precision lead screw
95 mm vertical travel
Height: min 89 mm, max 184 mm
Top and bottom plates parallel to 1 mm
Load capacity 8 kg (depending on motor & controller)
Supply voltage 36V

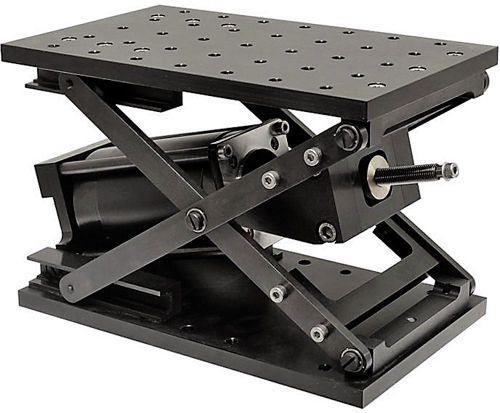

Motorized Vertical Translation Stage 940-0200 boasts our unique design. Being very compact, it provides smooth and stable adjustment of height. It has a large travel range and supports large loads. While moving the platform stays parallel to the base. Examples of use: making up for height differences during the set up; automation of technological processes, like laser welding. A stepper motor type – 5618, 200 steps. Customer can specify other types of motors to install. Load capacity and speed all greatly depend on the motor. We can test and select an appropriate motor for your requirements. The lead screw acts at a varying angle, so the resolution of the stage varies with position. The platform has an array of M6 holes spaced by 25 mm. The base has six M6 and two Ø6.5 holes. Material: black anodized aluminium.

Orientation : vertical
Type : motorized
Number of axes : 1-axis
Stroke : 95 mm (3.74 in)
