Vertical lifting clamp101670

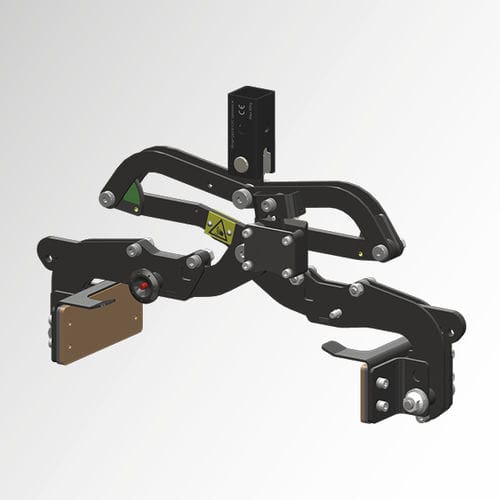

Scissor Clamping End Effector

This Scissor Clamping end effector is a mechanical end effector that can lift goods up to 30 kg together with NEO 30.

The Scissor Clamping end effector is a versatile and adaptable end effector that can be used for a wide variety of lifting applications. The width of the lifting object can measure between 270-500 mm, since the scissor’s arms can be manually adjusted between these measurements.

A mechanical mechanism automatically switches between the gripping and releasing mode, when pushing down the end effector towards the lifting object. This makes it more user-friendly. Also, the heavier the load, the more gripping force is applied by the Scissor Clamping end effector.

The design of the scissor’s arms also minimizes the pinching risk while operating the end effector because of the before mentioned mechanical mechanism that is used.

Lifting type : vertical
Other characteristics : mechanical, scissor
Load limit : 30 kg (66.14 lb)
