Order No.:55762
Type:0982 EEC 100

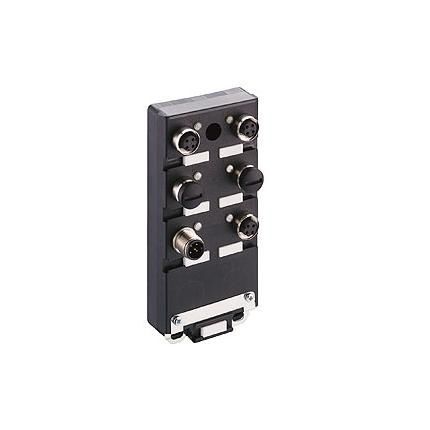

Description:Unmanaged Ethernet-Switch, IP 67, 5-port switch for 10 and 100 Mbps transmission rates, 5x M12 sockets: 4 poles D coding, M12 power supply: 5 poles standard coding
Availability:available
NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration.
Color of housingblack
Product characteristicsVibration resistence, Oil résistance, EMC
Classification
Belden classEthernet Switches
Belden brandLumberg-Automation
Mechanical data
Weight210 g
Dimensions (W x H x D)60 mm x 125 mmx25 mm
Environmental conditions
Environmental température0°C… 60 °C
Degree of protection (IP), mountedIP67
Materials
Housing material / Molded bodyPUR
Approvals
ApprovalsUL
RoHS 2002/95/EG compilantyes
Switch functionality
Switch functionality-Mode of operation: Store and forward -Number of storable addresses: 1000 -Aging time: 300 s -Tagging: EtherNet telegrams with VLAN tag field are transmitted unchanged
Ethernet Ports 10BASE-T / 100BASE-TX-Data transmission rate: 10 Mbit/s and 100 Mbit/s -Cable type: Twisted Pair (TP/TX) or star quad, CAT 5, shielded -Number of ports: 5
Type : unmanaged
Number of ports : 5 ports
Mounting : standard
Other characteristics : IP67
