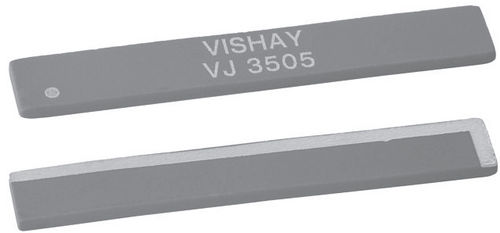

UHF antenna

* Small outline (35 mm x 5 mm x 1.2 mm)
* Omni-directional, linear polarization
* Complies with MBRAI standard
* Complete UHF band coverage (470 MHz to 860 MHz) up to 1.1 GHz
* Requires a tuning circuit and ground plane for optimal performance
* Standard SMT assembly
* 50 Ω unbalanced interface
* Operating temperature range (- 40 °C to 85 °C)
* Reference design and evaluation boards available upon request
* Compliant to RoHS directive 2002/95/EC

Network : UHF
Type : chip
Frequency : 1,575 MHz, 2,450 MHz, 5,000 MHz
Gain : 2.1 dB, 2.5 dB, 2.9 dB, 3 dB, 3.1 dB
