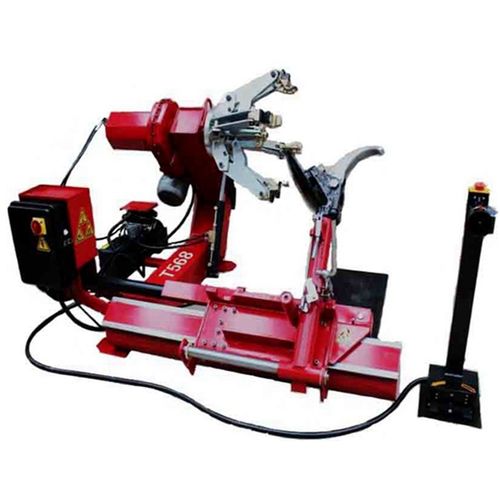

Truck tire changerT5 series

TECHNICAL DATA

MODEL

TY568 (CE)

RIM DIAMETER

14”-26”

MAX .WHEEL WEIGHT

500kg

MAX .WHEEL WIDTH

780mm

MAX .TYRE DIAMETER

1600mm

HYDRAULIC PUMP MOTOR

1.5kw 380V/220V

GEARBOX MOTOR

1.8kw 380V/220V

BEAD BREAKER FORCE

2500kg

OPERATION CONTROL VOLTAGE

24V

POWER

220V/400V 50/60Hz 1Ph/3Ph

WEIGHT&DIMENSIONS

NET/GROSS WEIGHT

570KGS/647KGS

OUTSIDE DIMENSION LWH

2030mm×1600mm×1000mm

Applications : for trucks
Type : automatic
Max wheel width : 780 mm (31 in)
