Full six degrees of freedom (6DOF) tracking, high precision, low system components cost, easy installation, and no line-of-sight issue.

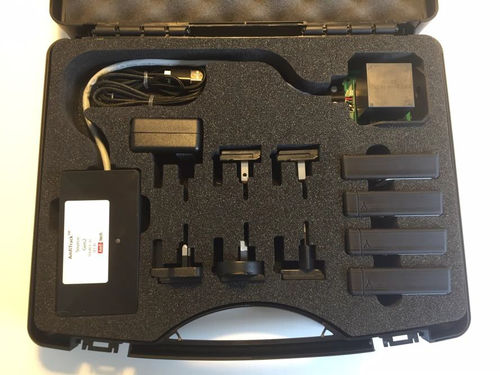

Contains:
– EMF Source driver – 1u.
– EMF Source 3D coil: 3DCC28-0039J
– EMF sensors – 3u. with 3DV15-A-S0900J
– USB RF Hub – 1u.
– Plug-in 5V USB PSU – 1u.
– Plug-in 5V USB adaptors – 5u

Electromagnetic Motion Tracking System Demo Kit Gen 2
The EMTS demo kit is an embedded stand-alone, high precision and low-cost 3D tracking system. The system positions an object in 3D, outputting the absolute position (XYZ) and rotation (pitch/yaw/roll) of the system components in respect to each other, making it a so-called true six degrees of freedom (6DOF) tracking system.

The AmfiTrack electromagnetic field (EMF) tracking system can be used for a wide range of applications. However, main benefits are full six degrees of freedom (6DOF) tracking, high precision, low system components cost, easy installation, and no line-of-sight issue, which as a very notable advantage compared with camera-based tracking systems.

The kits allow to run a system with one single 3D magnetic field source (connected to power supply) and three individual battery-powered wireless sensors. Each sensor has a 3D magnetic field receiver and a high frequency link to the USB receiver hub. The receiver hub translates the position and orientation data from each sensor to the laptop software.

All calculations are being made in the stand-alone wireless sensors. Laptop software only shows 3D information on screen, not being involved in the 3D calculation algorithms.

Type : wireless
