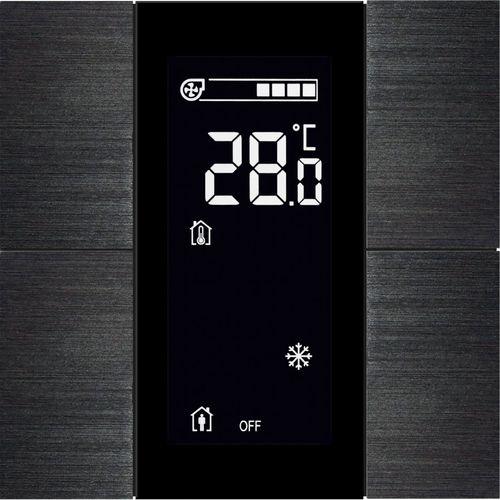

Interra iSwitch is a wall-mounting room controller device with integrated temperature and humidity sensor. The iSwitch able to control heating and cooling operating modes with 2-points, Continuous and PWM thermostat functions. Each push buttons equipped with an RGB LED to show feedbacks or visualization and LCD models equipped with VA-Display technology which provides low energy cost and good view angle. Moreover, there is a blue navigation LED for orientation nightlight. The device provides adjustable LCD backlight and LEDs intensity for user comfort. Product range has 9 different models with LCD and without LCD. All models can be programmable with same ETS database which provides efficient commissioning. The device has 2 different parts which are BCU and Application Board. Downloaded firmware carried on Application part, BCU part only carries KNX communication and power generation.

• All 9 models can be programmable with same database.
• Pushbutton has Switching, toggle, dimming, shutter/blinds, thermostat controls, scenes, value, 2 channels, step switching mode features.
• Locking feature available for each button and complete device
• On/Off (2-points) and Proportional (Continuous or PWM) thermostat functions.
• Comfort, standby, economy and building protection operating modes.
• Manual or Automatic switching between Heat and Cool modes.
• Temperature measuring through integrated sensor with possibility of sending the value on change and periodically to the bus.

Type : touch
Number of poles : multipole
Protection level : IP20
Mounting : wall-mount
Other characteristics : on/off, navigation, control, LED, automatic, manual, programmable, LCD, PWM
Primary current : Min.:
Operating temperature : Min.:
Width : 90 mm (3.5 in)
Height : 90 mm (3.5 in)
