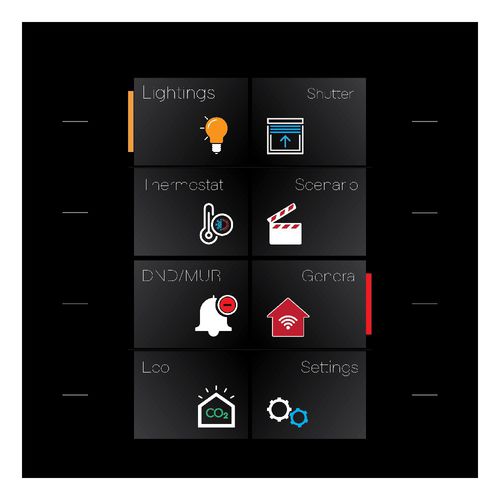

Interra justTouch is a complete room control device with touch front panel and 3.5 “colourful TFT screen. It performs all functions required for building automation such as lighting, shutter/blind control and DND as well as thermostat functions with its unique page structure. In the Interra justTouch user interface, there are 6 function pages other than the home page. Each page can be customized as desired by the users via ETS, and the button functions on each page can be adjusted according to need. In addition, button images and texts can be changed on ETS.

• Pushbutton has Switching, toggle, dimming, shutter/blinds, thermostat controls, scenes, value, 2 channels, step switching mode features.
• All 6 models can be programmable with same database.
• Locking feature available for each button and complete device
• On/Off (2-points) and Proportional (Continuous or PWM) thermostat functions.
• Comfort, standby, economy and building protection operating modes.
• Manual or Automatic switching between Heating and Cooling modes.
• Temperature measuring through integrated sensor with possibility of sending the value on change and periodically to the bus.
• Temperature (measured, external, setpoint, outdoor values as ºC), CO2 concentration (from bus), humidity percentage, operating modes, fan levels, on/off indicators, warnings and locking status are displayed on screen.

Type : touch
Number of poles : multipole
Protection level : IP20
Mounting : wall-mount
Other characteristics : on/off, automatic, manual, lighting, programmable, PWM
Primary current : 20 mA
Operating temperature : Min.:
