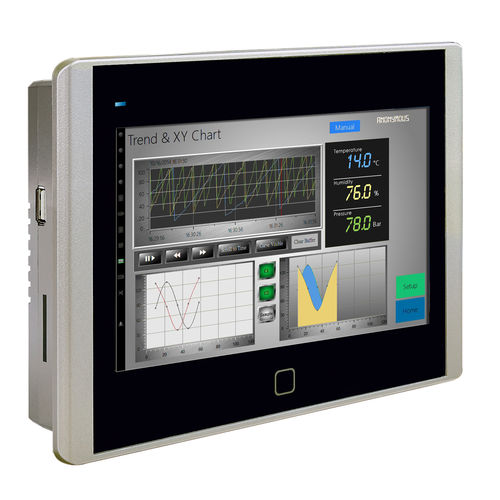

The N07 is 7” HMI equipped with ARM 9 (400MHz) CPU, 128MB SDRAM, 128MB Flash and rich communication interfaces, including 3 serial ports (RS-232/422/485), USB (host/device), Ethernet port, and SD Card slot for expansion. The system comes with 4 wire resistive touch, IP65 front panel protection against dust and water, and VESA mount or panel mount design.
With iFace Designer, the HMI visualization software, it fulfills all aspects of monitoring and control requirements in factory/process automation, measurement systems, and industrial IoT applications via the database of splendid vector graphics and wide coverage of PLC drivers and industrial communication and cloud communication protocols.
N07 HMI Features
– ARM9 (400 MHz)
– 800×480 (WVGA) TFT, 300 cd/m², 20,000 hours
– DC 24V+20%
– Plastic chassis, fan-less design
– Panel or VESA 75mm x 75mm mount, IP65 front bezel
– Suitable for industrial applications
Interface : touch screen
Mounting : panel-mount
Resolution : 800 x 480
Processor : ARM9
Other characteristics : economical, LCD, programmable, 24V DC, Ethernet, IP65, USB, RS232, Modbus, RS422/RS485, TCP/IP, 1 x RJ45
Applications : industrial, operator interface
Screen size : 7 in
