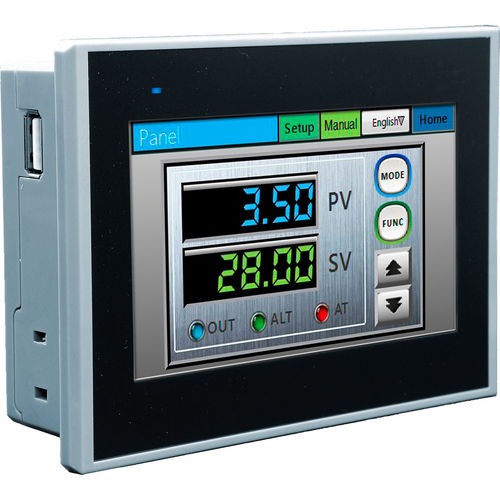

The N04 is 4.3” HMI equipped with ARM 9 (400MHz) CPU, 128MB SDRAM, 128MB Flash and rich communication interfaces, including RS-232/422/485, USB (host/device), and Ethernet port. The system comes with 4 wire resistive touch, IP65 front panel protection against dust and water, and panel mount design.
With iFace Designer, the HMI visualization software, it fulfills all aspects of monitoring and control requirements in factory/process automation, measurement systems, and industrial IoT applications via the database of splendid vector graphics, wide coverage of PLC drivers, industrial communication and cloud communication protocols.
N04 HMI Features
– ARM9 (400MHz)
– 480 x 272 TFT, 330 cd/m2, 20,000 hours
– DC 24V+20%
– Plastic chassis, fan-less design
– Panel Mount, IP65 front bezel
– Suitable for industrial application
Interface : touch screen
Mounting : panel-mount
Resolution : 480 x 272
Processor : ARM9
Other characteristics : economical, LCD, programmable, 24V DC, Ethernet, IP65, USB, RS232, Modbus, RS422/RS485, TCP/IP, 1 x RJ45
Applications : industrial, visualization, operator interface, for control panels
Screen size : 4.3 in
