The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbFin, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Available in vertical and horizontal orientations.

Features
•Maximum torque: 100 lbFin (11.3 Nm)
•Maximum angular travel: no l imit
•Throat: 4.10″ (104 mm)
•Angular rate: 12° / wheel rev.
•Angle dial with 2° resolution (optional digital angle indicator has 0.1° resolution, see below)
•Maximum slider travel: 15.5″ (394 mm)
•Slider travel rate: 1.047″ (26.6 mm)/lever rev
•Adjustable travel stops
•Torque plate with tapped holes for grip and fixture mounting
•Smooth hand wheel operation
•Lever operated slider for engaging and disengaging samples

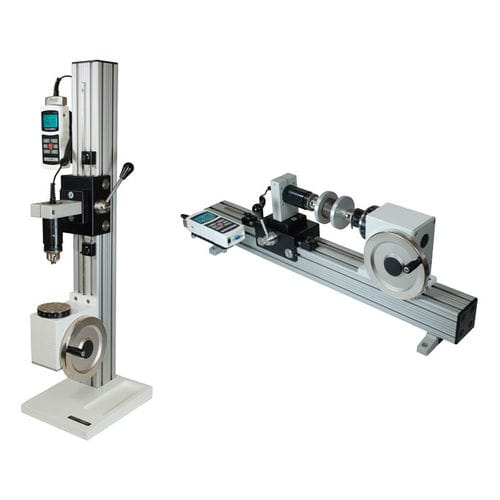

Options : torque, vertical, horizontal
