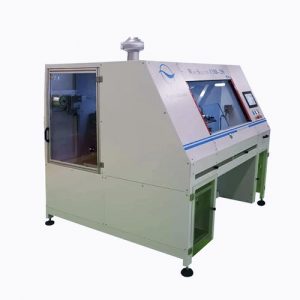

Carousel for tinning / stripping

• Designation: Carousel for tinning stripping

• Model: Cup crucibles / Rotary Pot or Selective Minivague

• Number of coils per cycle: 4 pcs

• Cycle time: Minimum 6 seconds depending on options

• Power / Voltage: 6000 W / 400V + N + T

• Alloy weight / Empty weight: Between 6 and 15 Kg / 900 Kg

Tinning / de-tinning carousel all pneumatic for mono-product Where then all electric for multiproducts comprising:

Loading / Unloading zone with optical fibers for detection of arms and presence of parts
1 st Zone fluxing
Mining zone
2 nd Fluxing Zone
Tinning Zone
Intangible barriers
Rotary table with arm supports (4; 6 or 8 stations)
Bottle cage for flux
Cleanliness bins
Electrical cabinet
HMI console with touch screen
Color tag

Dimensions: Length 2050 mm x width 2000 mm x Height 2340 mm (The dimensions may vary slightly depending on the configuration of the station).

Loading / Unloading area

Station made up of an optical fiber for arm detection, 1 cell for part detection and their amplifiers. A barcode reader can be added (on supply of specifications) for launch by series or by single part.

Fluxing Zone

Fluxing crucible with bucket controlled by a pneumatic cylinder or electric cylinder
Custom-made bucket to be adapted to your parts
Flow presence sensor
Pneumatic or electric raising and lowering system
Intermediate tank for flow with 3 level sensors
Single bottle holder for the flow (or double if alcohol is needed)

Tinning Zone and Stripping Zone

Technologies to choose from according to customer needs:

Tinning crucible with custom-made titanium cup

Custom-made titanium cup to be adapted to your parts

Technique : pulsed plasma
Applications : precision
Other characteristics : compact
