The Desk Sensor™ 1 (DS1) is a new Anti-Collision™ solution that can limit material damage to a desk or an object if a collision occurs while driving the desk.

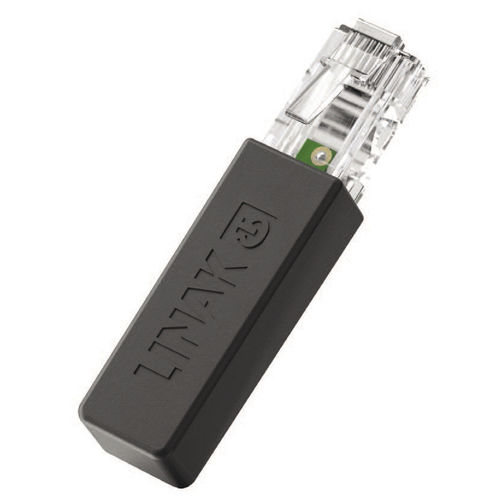

The DS1 is a small, compact plug-in adapter based on gyroscope-technology, and it detects even a slight tilt in the desk while the desk drives up or down. Upon detected tilting, the system stops and drives in the opposite direction to avoid collision and damage to the desk or the object.

The DS1 can detect both hard and soft obstacles. The DS1 is compatible with all DESKLINE® systems based on Control Box CBD6S and with DL IC systems (Integrated Controller) and works with both 2-part and 3-part columns. Optionally, the DS1 can also be combined with the well-known PIEZO™ technology, ensuring an even higher level of anti-collision.

The DS1 is highly sensitive, stable and works independently of load and temperature.

Number of axes : multi-axis
Output : digital
Technology : MEMS
Other characteristics : with gyroscope
Resolution : 0.7 °
