Three-phase alternatorG35

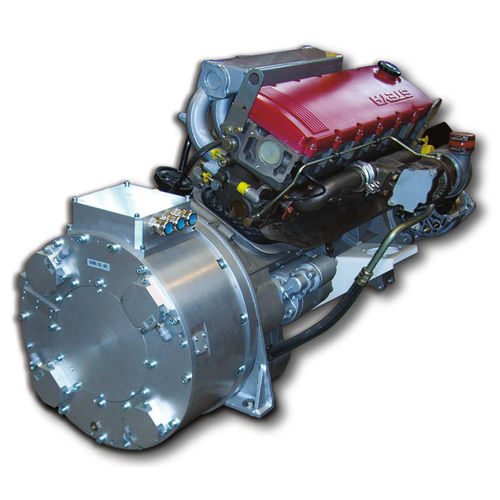

The 240 kW G35 generator is the basis of a powerful, state-of-the-art prime mover for fully hybridized military or heavy duty commercial vehicles. With the addition of advanced electronic controls and software, a complete turnkey system is available. Industry standard
communications protocols SAE J1939 (US) and CAN Open (EU) are implemented to accommodate the widest possible application base and enable the use of both COTS and
MOTS components.

KEY FEATURES
• Permanent magnet, water-cooled
• Continuous power: 240 kW @ 3,600 rpm
• SAE 3 flange compatible
• Including bearings and flexible coupling

Phase : three-phase
Type : permanent magnet
Product applications : for heavy vehicles, for commercial vehicles
Field : commercial, for military applications
Other characteristics : liquid-cooled
Power in kVA : 240 kW (326.31 hp)
