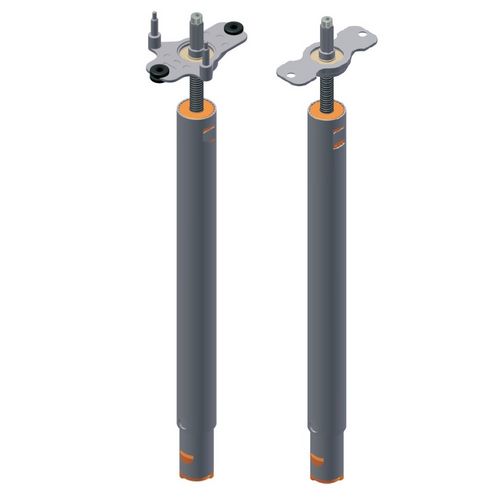

Synchronous telescopic spindle unit 4115.14

Twofold telescopic lifting unit with bevel gear head for various linear drive solutions. Ideal for electromotive sit-stand workplace applications or wherever an infinite linear adjustment is required at a high speed, maximum stroke with a minimum installation dimension.
The lifting unit is available in different spindle lengths.

Special features
Double speed through synchronous telescope design
Maximum stroke with minimum installation dimension
Ideal for electromotive drives
Available in different spindle lengths

Technical notes
The lifting units must be protected against lateral forces by a separate guide system.
Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application.
The lifting unit is only pressure loadable.
Customer specific stroke and installation lengths available upon request.
Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at:
https://www.ketterer.de/en/downloads/instructions

Type : rotating screw
Other characteristics : motorized, for table height adjustment, for workstation height adjustment, telescopic
Travel : 720 mm (28 in)
Load : 900 N
