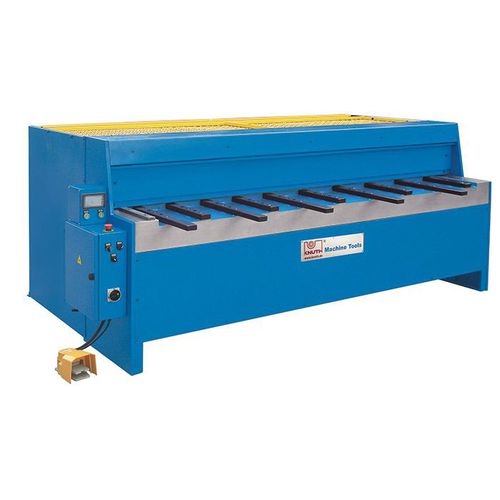

Motorized Swing-Beam Shears with controlled back gauge
Details
Machine Frame and Drive System
• – The machine frame is made of a robust steel weldment treated with stress-relief annealing
• – An automatic hold-down fixates the plate during cutting
• – The double-edged upper and lower knives can be rotated and reused
Material Support
• – The rigid side angle stop simplifies alignment of the plate to the cut line
Operation and Ergonomics
• – The PLC back-gauge control with 4.3″ touchscreen features a user-friendly graphic interface for quick and easy programming
• – The mobile control unit features a foot switch, so the operator has both hands free
Back Gauge
• – The backgauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
• – A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates
• – Support arms are positioned via an air cylinder and lowered in sync with the cutting process
Standard Equipment
• – work lamp
• – operator instructions
• – foot pedal
• – powered rear stop
• – lateral stop
• – pcl control
• – safety guard with power off after open door
• – pneumatic sheet hold-up device
• – cut-line lighting
• – hold-down
• – Back gauge with 4,3″ Touchscreen
• – Support arms with material support balls
• – Safety cover Working area Backgauge
Operation : electric
Application : plate
Type : swing-beam
Other characteristics : motorized, automatic
Plate thickness : Max.:
Working length : 1,300 mm, 2,550 mm (51.18 in)
