Process:

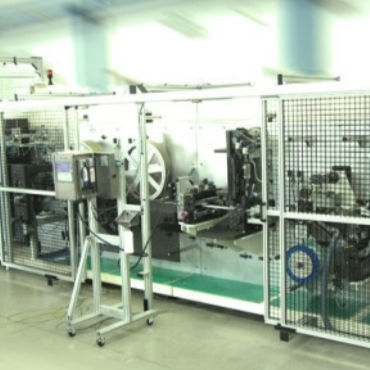

This machine automatically assembles 3 layers of non-woven (more upon request) through the following operations:
· Unwinding of the non-woven webs
· Cutting and positioning of the nose bar
· Welding and cutting of the mask
· 90° rotation of the mask
· Placing and welding of the elastic
This process is continuous.

You are interested in our technology but you have more specific needs? Check the different standard modules we use on this machine and see how you could integrate them to a more personalized machine.

Options:
· Ink-jet marking
· Conveyor to stack masks automatically into cardboard boxes (boxes are assembled manually)

Mask features:
· Maxi length of the mask: 175 mm
· Maxi width of the mask: 95 mm
· Applications: Medical, hospital and pharmaceutical, food-processing, cosmetics, electronics…

Technical features:
· Speed in production: up to 35 meters/min* – up to 12,000 masks per hour*
· Ultrasonics: 20, 30 and 40 kHz
· Pneumatic: 6 bar
· Main supply: 400 V, three phase + neutral, 50 Hz
· Machine dimensions (in m.): 11.80 x 2.10 x 2.90 (L x W x H)
(with conveyor and 3 unwinds)

* Production and speed depending on non-wovens and elastic characteristics

Why Cera Engineering ?
Because we combine years of experienced know-how in ultrasonic welding, with a technical expertise as a manufacturer of production machines. Industrial equipment at competitive prices. A wide range of cutting and welding tooling.

Other machines to produce medical devices and PPE.
Cera Engineering manufactures a range of ultrasonic welding machines for the production of medical devices and PPE:
Bouffant caps – Automatic machine for the production of bouffant caps for medical use,

Finished product : non-woven, for surgical masks
Other characteristics : automatic, continuous
