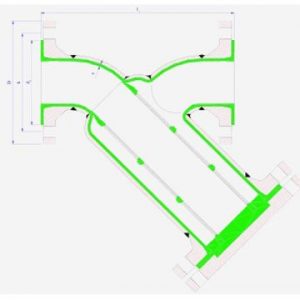

Strainer filter

Multi-Coupling System® manufactures high pressure filters for loading and unloading lines.

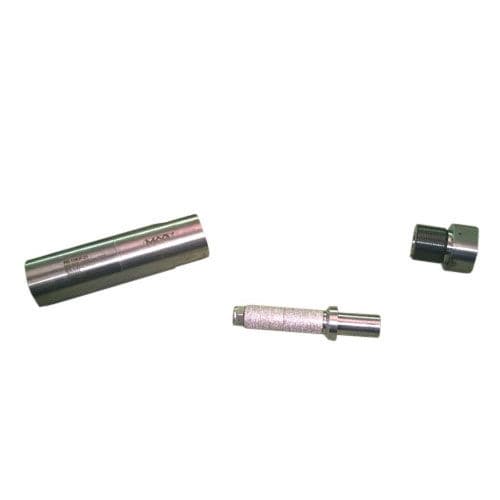

The filtering element is a peculiarity of the filters, which is not made with sintered material, whose damage can cause more serious damages than impurities do, as it has a micro-perforated core made with very high resistance steel and wrapped up into metal mesh with a high filtering potential.
Filtering element collapse is almost inexistent and the circuit is protected against impurities.
Maximum operating rating 2100 bar, maximum allowed capacity 30 l/min.

Filtration element : strainer
Filtration method : pressure
Applications : high-pressure
Other characteristics : metal mesh, in-line
Operating pressure : 2,100 bar (30,457.925 psi)
Flow : 30 l/min (7.925 us gal/min)
