Usage

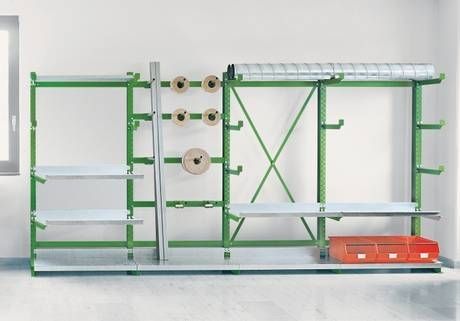

Shelf units for bar materials with 3 different applications:
Single- or double-sided shelf unit for storing tube rounds, bar material, pipes and tubes on cantilever supports
Storage of di erent goods (blanks, storage bins) on shelves and in storage troughs suitable for laying on the 500 mm cantilever supports and/or upright feet
Storage of ring-shaped materials with tubular holders, also suitable for separating rod and bar stock etc. which is stored upright
Component parts
Single-sided uprights made of double T-section IPE 100, welded and slotted on a 50 mm pitch to accept cantilever supports
Longitudinal bracings, 1000 mm long, made of rectangular tube, 2 per bay
Cross bracing screwed to the longitudinal bracings for additional stabilization. One cross bracing required for every 5 bays.
Cantilever supports 400 and 500 mm long, T-section, screwed to the uprights to accept bar materials, shelves, and/or storage troughs (500 mm only)
Roll stop, perforated steel angle, complete with fixings
Set-up: The shelf units must be located on a rm and even foundation. The uprights must be anchored to the floor.
Type : storage warehouse
Capacity : for long items
Other characteristics : with shelves
