Steel slingTYRSY-GL

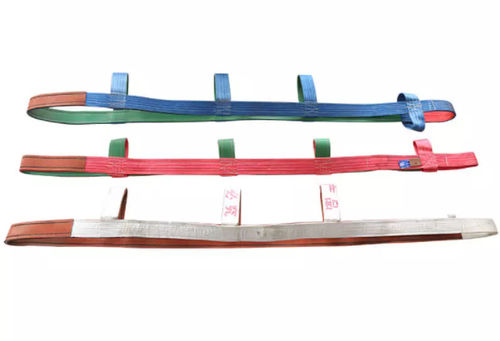

Glass Lifting Sling
1.Swiss ribbon low adopted
2.Four layers with 9 kg heavier than the similar product in the market
3.Chinese National Patent
4.Pacific Insurance Company
5.China domestic test report and destroy tension test

Description

We are very proud to say we have a high quality and very designed glass slings in China. We use the Swiss ribbon loom to make it, one sling has four layers. It was made by the high-intensity polyester tread as the bearing core, and add high-tech materials in the inner glass contact area as the anti-cutting layer. Also, it originally creates the R-angle full-steel plate base which can be used in the lifetime. Product design conforms to the principle of mechanics, spreads the load, and the details are perfect.

This sling is 9 kg heavier than the similar product in the market, which makes its life cycle doubled. It was applied for the national patent (patent number: 201430200860.0) protection and is under protect by Pacific Insurance Company. It is qualified with China domestic test report and destroy tension test.

Features
Swiss ribbon low adopted
Four layers with 9 kg heavier than the similar product in the market
Chinese National Patent
Pacific Insurance Company
China domestic test report and destroy tension test

Model
TYRSY-GL

Capacity
5, 10, 20 tons

Length of the Sling (after folding)
3.3-meter, 3.5-meter, 4-meter & customized

Width of the Sling
100mm

Steel Base
1)14 thickness *90 width*200 length (mm)
2)14 thickness *90 width*200 length (mm)
3)14 thickness *90 width*customized length (mm)

Length of the Anti-cutting layer
900mm

Material : steel, polyester
Load capacity : 5 t, 10 t, 20 t (5.5 us ton)
