Steel pipe expansion jointHYDRA

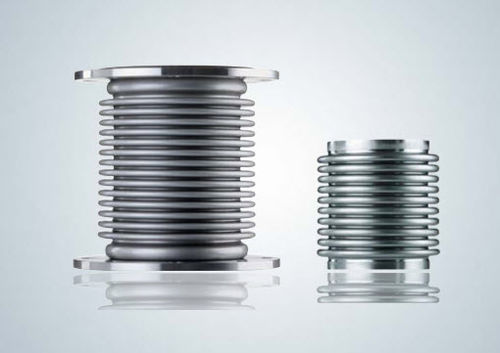

HYDRA Axial Expansion Joints
Powerful standard and special designs are cost-efficient
solutions for simple compensation tasks. Adjusted for ver-
satile use in all applications with clearly defined moderate
fixed-point forces. Multi-ply metal bellows designs made of
stainless steel are available in numerous different nominal
diameters and with a selection of connection options.
Details
■ Stainless steel bellows, multi-ply
■ Standard dimensions from DN 15 to DN 3000
■ Larger dimensions with diameters of up to 12 m are
available as well
■ Special designs: inner sleeves, special materials,
deviating flange drill templates

Material : steel
Configuration : round
Installation system : flange
Applications : for air conditioning
Nominal diameter : Max.:
