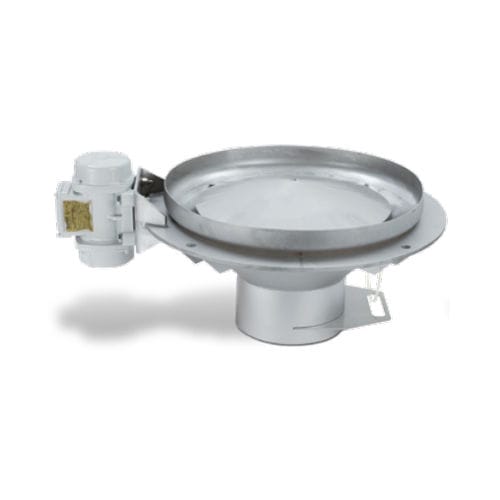

The VB vibratory bottom is used to activate bulk material flow for virtually all poorly-flowing, non-fluidizable bulk materials for discharge from silos and vessels.

The vibratory bottom is used for external and internal storage silos as well as weighing and storage vessels.

The output of a vibratory bottom cannot be metered or adjusted, so the vibratory bottom acts solely as a discharge device. A downstream rotary feeder would serve as a dosing device.

Characteristics:

Discharge bottom for activation of bulk material, functioning on the principle of vibration.
Funnel output bottom with welded-in relief cone, firmly attached unbalanced motor and vertical buffering suspension rings form a sturdy unit, which ensures the uniform discharge of the dynamic loads
Universally suitable for virtually all bulk materials without modification
The sleeve on the product feed area decouples vibrations from the silo or vessel. The product discharge area is connected to a downstream unit by means of a sleeve and connecting nozzles. This connects to the vibratory bottom at the top and base, creating a tight, closed and freely vibrating system.
Effective lines of force are created by uniform vibration input via a support ring.
The vertical buffering suspension rings support the vibratory bottom and ensure the statically required load absorption and the precise recovery of horizontal loads.
Integrated emergency slide valve for use in emergencies, e.g. removal of downstream unit when silo is full

Other characteristics : stainless steel
