HomePower Transmission - Mechanical componentsMechanical TransmissionSpur gear Spur gearS+L
Previous product
Spur gearKSS0.5-30C
Back to products
Next product
Spur gear

Spur gearS+L

ATLANTA | Germany |

Compare
Add to wishlist
Categories: Mechanical Transmission, Power Transmission - Mechanical components, Spur gear
Share
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

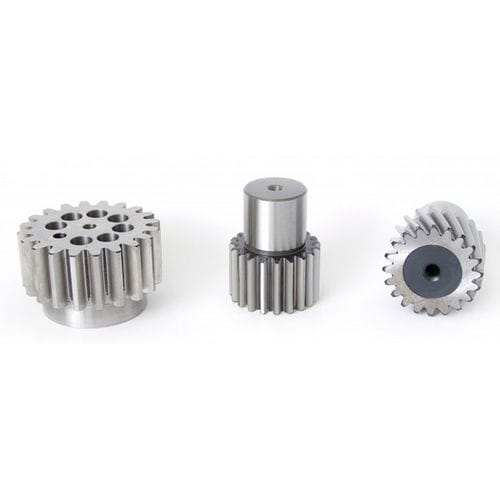

The S+L Individuell pinions are with hardened and ground teeth. Unlike the famous 24 series pinions they can be indivudually rework in the keyway, bore and hub.

As versatile gears with precise and quiet operation, are compatible to the most pinions of our 24 series and can be used, in combination with a shrink disct, for all standard types of gearboxes.

Technical Datas:

material 16MnCr5, 1.7131
carburized, teeth induction hardened 60HRC
gearing grade 6e25
teeth grounded
straight and helical tooth, left-hand 19°31’42”
module 2-6 straight tooth, 2-8 helical tooth

Advantage of “S+L Individuell” pinions

special solution for your application
short delivery time
can be use in combination with shrink-disc
proven ATLANTA top quality
on ATLANTA racks optimized tooth shape for particularly smooth running

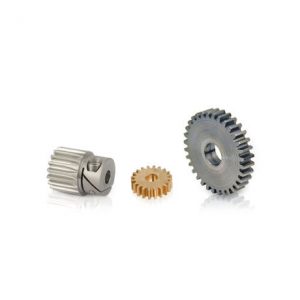

Examples of reworked “S+L Individuell” pinions:

Rework Inquiry
In order to be able to answer your inquiry as fast as possible, please send us, if available, the relevant drawings.

We will go in contact with you as soon as possible.

With kind regards

ATLANTA Antriebssysteme
E. Seidenspinner GmbH & Co. KG

Type : spur
Teeth : helical
Other characteristics : hub, ground
