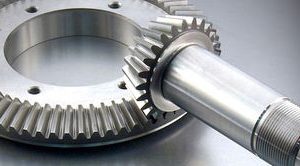

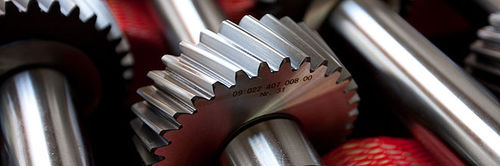

Spur gear

a) Cut-teeth
– Module: 0.3 – 10
– Diameter: ca. 4 – 630 mm
– Helix angle: beliebig

b) Flank-ground gears up to quality 4 (nach DIN 3962/67):
– Module: 0.5 – 15
– Diameter: ca. 10 – 800 mm
– Helix angle: 0° – 45°

c) Shaved up to quality 5 (nach DIN 3962/67):
– Module: 1.5 – 4
– Diameter: ca. 10 – 300 mm

Type : spur
Teeth : helical-toothed
Other characteristics : shaft
