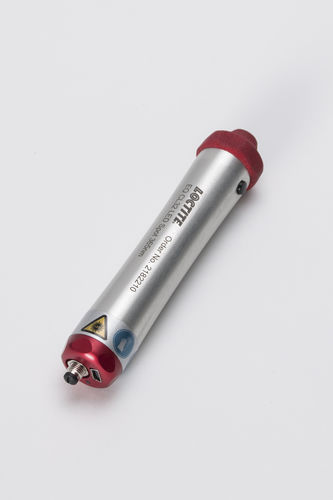

LOCTITE EQ CL32 – The result is an LED light source that is flexible in use and perfectly designed to suit the Loctite UV adhesives range. Throughout industry cycle times in manually and automated processes get increasingly shorter and as a result the demands on UV adhesives and UV-curing equipment have risen. The new Loctite UV light sources can be operated either cable-free by hand as well as with a permanent power supply. With this development Henkel expands its Equipment portfolio by introducing another high quality product while taking into account the technical demands of the optoelectronics, ergonomics of use and the typical working environmental conditions in modern manufacturing.
The Loctite EQ CL32 LED light sources are available in 365nm or 405nm wavelength.
Product Properties
● High UV intensity – Up to 3 W/cm2
● Long life time of LED
● Low cost of ownership
● No heat load to the curing area
● Stable UV intensity over battery lifetime
● No cooling for LED head necessary
● Compact size, light weight
● Available in 365 nm and 405 nm
wavelengths
● Temperature and current monitor of LED
Benefits:
– Combines handheld and stationary unit
in one device.
– Robust aluminum housing.
– Ergonomic finger switch.
– Rechargeable using mini-USB adapter..
– Long focus length to allow for maximum
flexibility.
– 100 % Duty Cycle when operated by wall
power (stationary mount)
Illumination technology : LED
Spectrum : UV
Other characteristics : high-power, spot
Technical applications : for adhesive curing
Wavelength : 405 nm
Output power : 3 W (0.00408 hp)
