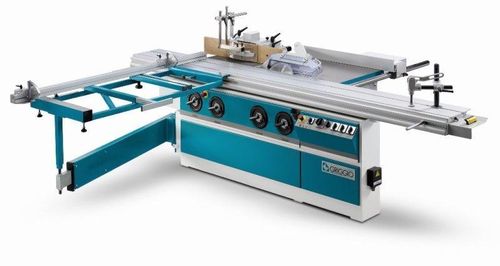

Spindle molder with tilting bladeTS 150

TS 150 SAW-SPINDLE MOULDER 1500 MM.
– Saw-spindle moulder with tilting blade
– TS 150 table sizes:
TS 150/1500 330×1500 mm.
TS 150/2000 330×2000 mm.
– TS 300 table sizes:
TS 300/2600 330×2600 mm.
TS 300/3200 330×3200 mm.
– Cross-cut capacity sliding table 1500 mm 1550 mm.
– Cross-cut capacity sliding table 2000 mm 2050 mm.
– Cross-cut capacity sliding table 2600 mm 2700 mm.
– Cross-cut capacity sliding table 3200 mm 3300 mm.

Technical data:
– Fixed table sizes 1450×650 mm.
– Saw blade dia. (standard) 300 mm.
– Saw blade dia. (on request) 350 mm.
(compulsory parallelogram blade guard)
– Scoring saw blade dia. 100 mm.
– Blade tilt 0°-45°
– Max. cut height with blade dia. 300 mm. 90 mm.
– Cut width between blade and rip fence 1000 mm.
– Blade rotation speed 4000 r.p.m.
– Side movement of saw unit 140 mm.
– Useful height of spindle moulder shaft
with dia. 30 mm. 140 mm.
– Useful height of spindle moulder shaft
with dia. 35-40-50 mm. 160 mm.
– Tenoning tool max dia. 320 mm.
– Spindle moulder shaft rotation speed
3200-4200-6000-8000 r.p.m.
– Spindle moulder motor power 5,5 hp (4 kw)
– Saw unit motor power 5,5 hp (4 kw)

The machines are equipped with:
– Scoring unit with separate motor
– Alu carriage with hardened steel rails sliding on wheels
– Handwheels on the front side of the machine
– Spindle moulder fence with adjustable extensions
– Eccentric woodpresser
– Safety guards
– ‘CE’ standards

Type : with tilting blade
Applications : for wood
