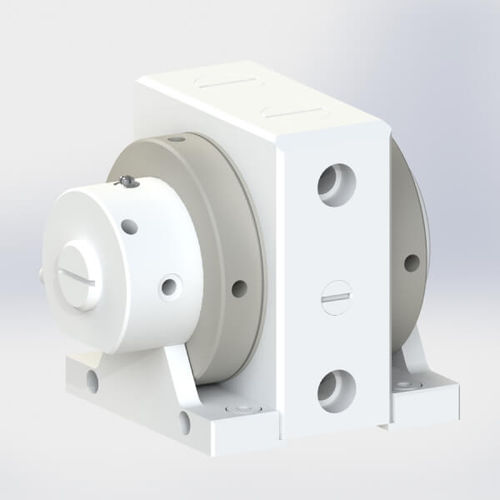

Since 1984, Almatec® has been manufacturing a variety of specialty pumps for supplying and circulating chemicals in the semiconductor industry. With its straight-through flow pattern technology, the Almatec FUTUR Series Air-Operated Double-Diaphragm (AODD) Pump is ideally suited for the special requirements of these applications.
FUTUR Series pumps are self-priming and dry run capable, and feature a compact, simple design with few parts. FUTUR Series pumps have housing parts machined from solid blocks for long-life performance, and are cleaned, assembled and tested in a cleanroom line. For every pump size and material option, the appropriate pulsation damper is available.
The FUTUR is currently available in four materials:
Four sizes made of PTFE/PE for acids and caustics up to 130°C (266°F) (FUTUR T model)
Two sizes made of PTFE for hot applications with acids and caustics up to 200°C (392°F) (FUTUR H model)
Two sizes made of PE for slurries (FUTUR E models)
Two sizes made of SS316L for solvents (FUTUR S and SH models)Four material versions (T/H/E/S) for different applications
All plastic models contain no metal
Temperature range up to 200ºC (392ºF)
Patented, contactless cascade sealing between the product chambers
No O-ring sealing in wetted areas
Straight-through flow pattern, only one wetted housing part
Maintenance-free PERSWING P® air control system
Internal air flow
Fluid : for solvents, acid
Operation : air-driven
Priming : self-priming
Technology : double-diaphragm
Domain : industrial
Applications : control
Material : plastic, PTFE
Other characteristics : compact, dry
Flow : Min.:
