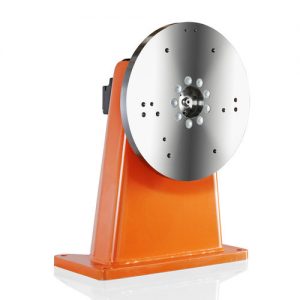

KP1-HC single-axis positioner with counterbearing

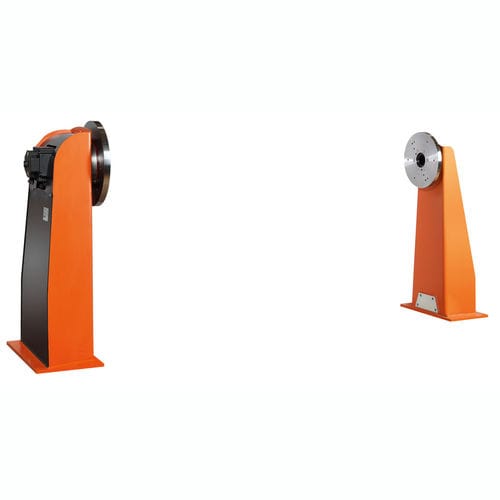

The KP1-HC single-axis positioner with horizontal rotational axis consists of a drive and counterbearing with a hollow shaft. It is available with a payload capacity of 250, 500, 750, 1,000, 2,000 or 4,000 kilograms. Tool radii of 950 to 1,250 millimeters offer maximum possible flexibility in system design.
Advantages of the KP1-HC single-axis positioner:
Broad portfolio:
Thanks to the wide range of tool radii, loading heights and payload capacities that are available, you can enjoy the greatest possible flexibility when designing your system.
Integrated hollow shaft:
The hollow shaft integrated into the counterbearing can be used to route the energy and fluid supply lines in a highly space-efficient and convenient manner.
Infinite rotation:
Thanks to its infinitely rotating design, the KP1-HC is optimally positioned and can be used without limitation in any axis orientation.
Low space requirements:
Thanks to its compact design, the KP1-HC single-axis positioner can be easily integrated anywhere. Enjoy greater creative freedom in the planning process.
Simple integration:
The optional connecting tube of the KP1-HC allows you to align the drive and counterbearing easily and accurately.
Flexible alignment:
The length compensation of +/- 5 mm integrated into the counterbearing enables compensation of tool carrier tolerances.
High welding power:
Weld with up to 1000 A with a duty cycle of 100%.
Data and variants of the KP1-HC positioner:

KP1-HC 250KP1-HC 500KP1-HC 750KP1-HC 1000KP1-HC 2000KP1-HC 4000
Rated payload250 kg500 kg750 kg1,000 kg2,000 kg4,000 kg
Tool radius
(in steps of 100 mm)

Type : motorized
Orientation : rotary
Number of axes : single-axis
Payload : Min.:
