Components:
1. Housing: Nodular Cast Iron(Ductile Iron) QT600
2. Gears Profile: Hardened Helical Gears
3. Gears Material: 20CrMnTi
4. Gears Processing: Carburizing, Quenching, Grinding
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
6. Gears Accuracy: 6 Class
7. Shafts Material: 40Cr
8. Input Configurations:
Keyed Solid Shaft Input
IEC Normalized Motor Flange
9. Output Configurations:
Keyed Hollow Shaft Output
10. Oil Seal: TAIWAN SOG
11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC
12. Spare Parts: Torque arm, Optional Backstop

Models:
1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
2 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D

Features:
1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

Applications:
Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Transmission Mechanism:
Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line

Installation:

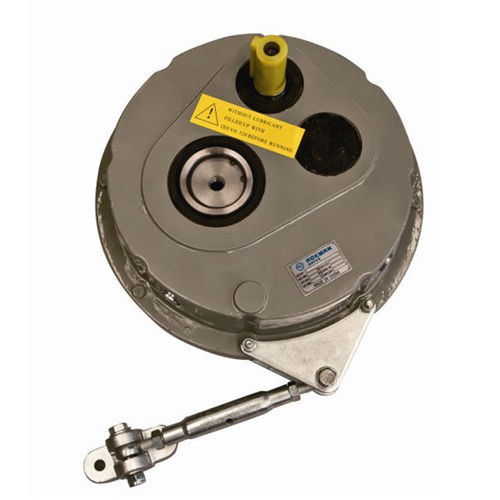

Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: ATA, Electric Roller, Pulley, Electric Motor, Torque Arm

Type : helical
Shaft orientation : coaxial
Torque : > 10 kNm
Applications : conveyor, transmission
Other characteristics : shaft-mounted, mounted, motor
Rotational speed : Max.:
Power : Max.:
