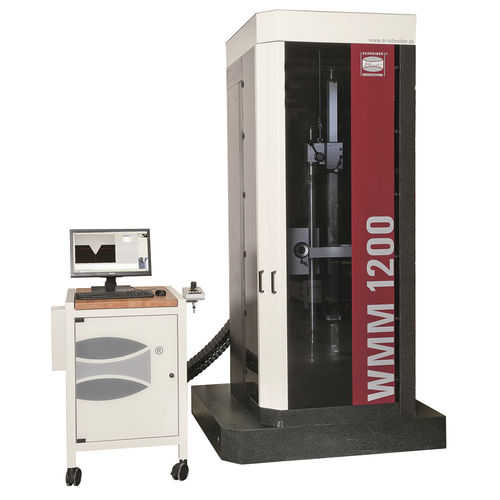

WMM 600 / WMM 1000 / WMM 1200 Description

Precision measurement of length and diameter, radii, angles, chamfers and all necessary geometric and positional tolerances with reduced throughput times and workpieces up to 1200 mm in length.

Fields of application of the WMM Series

With the machines from the WMM Series, you have a precision system for the measurement of rotationally symmetrical parts up to 2200 mm in length and a maximum diameter of 400 mm. In just one operation in the basic configuration, lengths and diameters, radii, angles, chamfers as well as all the required geometric and positional tolerances can be identified and measured.

All in one – the WMM Series also reduces your throughput times.

Fast measurement speeds, simple operation and the SAPHIR measurement and analysis software make this system the preferred partner for your workshop and measurement room. The distinct advantage over comparable systems is its high measurement accuracy, not only for diameters but also lengths, radii, chamfers and smallest contour details on rotationally symmetrical measurement objects. Furthermore, there is also the option of precise incident light measurement of blind bores, grooves and other contours and elements not measurable in transmitted light. Should this prove insufficient, a TP200 6-way touch-trigger probe can be integrated from WMM 300 and even an SP25 scanning probe from the WMM 450. The 2D shaft measuring machine then becomes a 3D shaft measurement machine.

Measured physical value : contour, geometry, concentricity, diameter, angle, length
Technology : 3D
Measured material : shaft
Applications : for industrial applications
Other characteristics : CNC
