DESCRIPTION

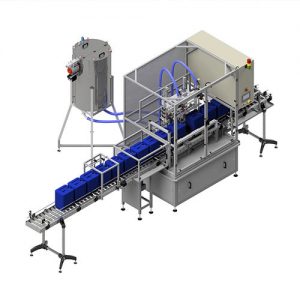

The ERIFUT 1 XNP LT DOSING allows the semi-automatic packaging in accordance with a target weight with a partial diving cane.

The ERIFUT 1 XNP LT DOSING is ergonomically designed to optimize the conditions of handling and operator exposure in an improvement process complies with REACH requirements :

• Control panel and deported maneuvering system
• No direct contact with the dip tube
• No direct exposure to the emanation or splashing (completely removed with an extractor hood)
• No awkward handling of the dip tube

This configuration, associated with rollers conveyor, is ideal for the filling of non-foaming products in barrels or containers.

Filling is performed, based on a unit weight target, by an automatic filling cycle triggered by the operator

DOMAINS OF USE

Our machines are designed for industrial exploitation.

• Atmosphere without specific constraint.
• Atmosphere with specific constraint for use in chemical environments, food or pharmaceutique.For example: ISO 7 clean room or laboratory class D, GMP strain, ASM BPE, etc ..
• Our machines can meet the requirements of the ATEX directive for use in explosive atmosphere Zone 1,21 and 2,22.

FEATURES

Motion control

• The diving system indexable (stroke 420 mm) to manually ensure diving the dip tube into the container with a blocking high and low position of the tube. The stops positioning units are adjustable in height to allow the modification of the stroke. An assist spring allows to help the rise of drumming device.
• Barreling adjustable arm height punctually with tools.

Operational mode : semi-automatic
Container type : drum
Product applications : for packaging, container, for non-foaming liquids
Type : vertical, gravity
Other characteristics : 1-axis, ATEX, with conveyor
