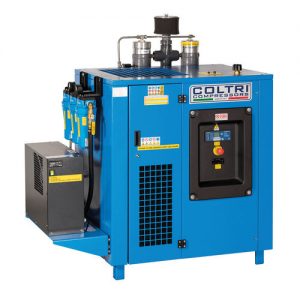

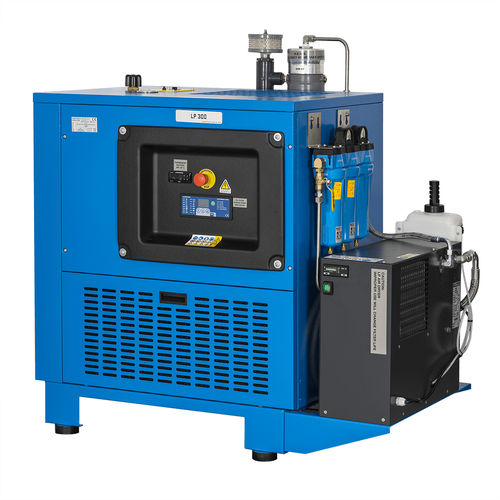

It consists of an industrial screw compressor that delivers air at a pressure of 8 bar towards a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% of oxygen. The enriched air can be compressed to 232 bar in combination with a high pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted from 32% to 40% thanks to a valve accessible directly on the top of the compressor. The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve.
Standard equipment
Electrical cabinet
Automatic condensate drain
2 analyzers
Thermostat
1 Permea 230 membrane
Engine: Electric three-phase 400 V – 50 Hz
Technology : screw
Type : air, nitrogen, for oxygen
Power source : electrically-powered
Portability : stationary
Application domain : industrial
Other characteristics : high-pressure
Pressure : 8 bar (116.03 psi)
Flow : 64.2 m³/h (2,267.2 ft³/h)
Power : 7.5 kW (10.2 hp)
