Description

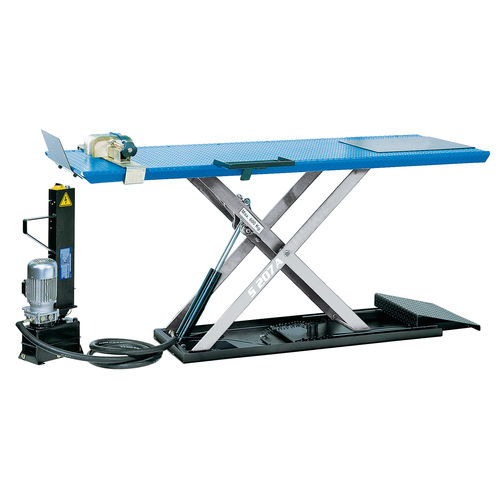

Hydraulic Scissors Platform-Lift designed for motorbike-specialists.

CONSTRUCTION FEATURES:
Hydraulic lift made in accordance with the standards given by the Machinery Directive, by EN 1493/98. Reversible load positioning. Retractable drive-on ramps. SAFETY DEVICES:
Man-operated controls. Hydraulic stop valves. Overload valve. Anti-crushing devices. Self-engaging mechanical racks for standing and fall preventing, with pneumatic release.

5cissor lift, particularly rugged and safe. able ta lift motorcycles and scooters having max. weight of 600kg.
5 207 A can be equipped with different kinds of optional extensions so as to allnw to lift, in safe conditions, three-wheelers and small cars.

Features
Lifting system with electro-hydraulic control unit;
Max. capacity: 600 kg;
Max. height: 1200 mm;
Min. height: 140 mm;
Platform dimensions: 2300 x800 mm;
Retractable drive-on ramp;
Side stand support (movable);
Rear wheel support (movable);
Anti-crushing platform structure (CE approved);
Manual wheel locking clamp.

Type : scissor
Maximum load : 500 kg
Operation : electro-hydraulic
Applications : for motorcycles
Other characteristics : platform
Lifting height : Min.:
