Drive: Electro hydraulic
Supported weight: 3T
Lifting height: 1950mm
Initial height platform: 100mm
Platform length: 1420mm
Platform width: 650mm
Climb time: ≤50s
Descent time: ≤60s
Total length: 2010mm
Total width: 2200mm
Weight: 800kg
AC voltage: 230V
Power: 2.2kw
Hydraulic oil: 18L
Operating temperature: 5-40 ℃
Work Humidity: 30-95%
Frame temperature: -25 ℃ ~ 55 ℃
Installation location: Interior

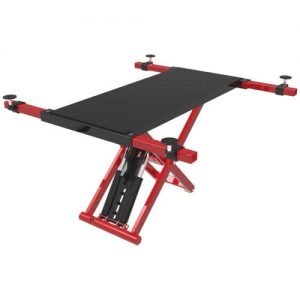

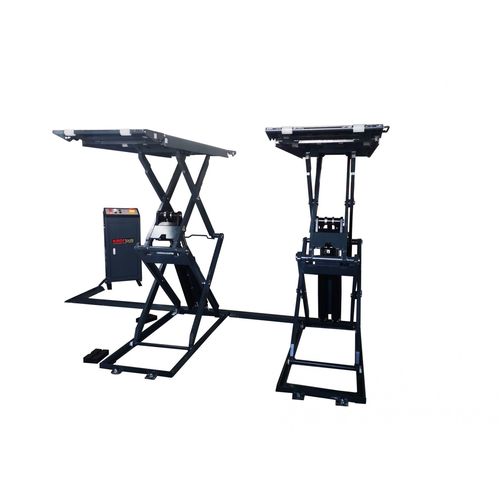

Noise: <76db Description: •This lift can lift each kind of vehicle whose weight is less than 3000/3500kg •Is suitable for use in vehicle tests, maintenance, and caring for automobiles, which is particularly suitable for use in the basement or on the floor, without construction and hole •Use hidden and thin scissor structure, dispense with construction and ground hole, the occupation is small •Independent control box, low-voltage controlling, good security •Hydraulic cubage and in-phase cylinder, the synchronization of platform •Own the safety equipment of hydraulic lock •Own protection of safety valve and burst-proof equipment for hydraulic failure and over loading •So when the oil pipe bursts, the machine will not fall quickly •Own manual lowering operation when the power is cut, and the manual pump is prepared by the user. Type : scissor Maximum load : 3 ton Operation : electro-hydraulic Voltage : 220V Applications : for car Lifting height : Max.:
